THESIS: BEYOND THE ABSOLUTE
TH 10 BASSO

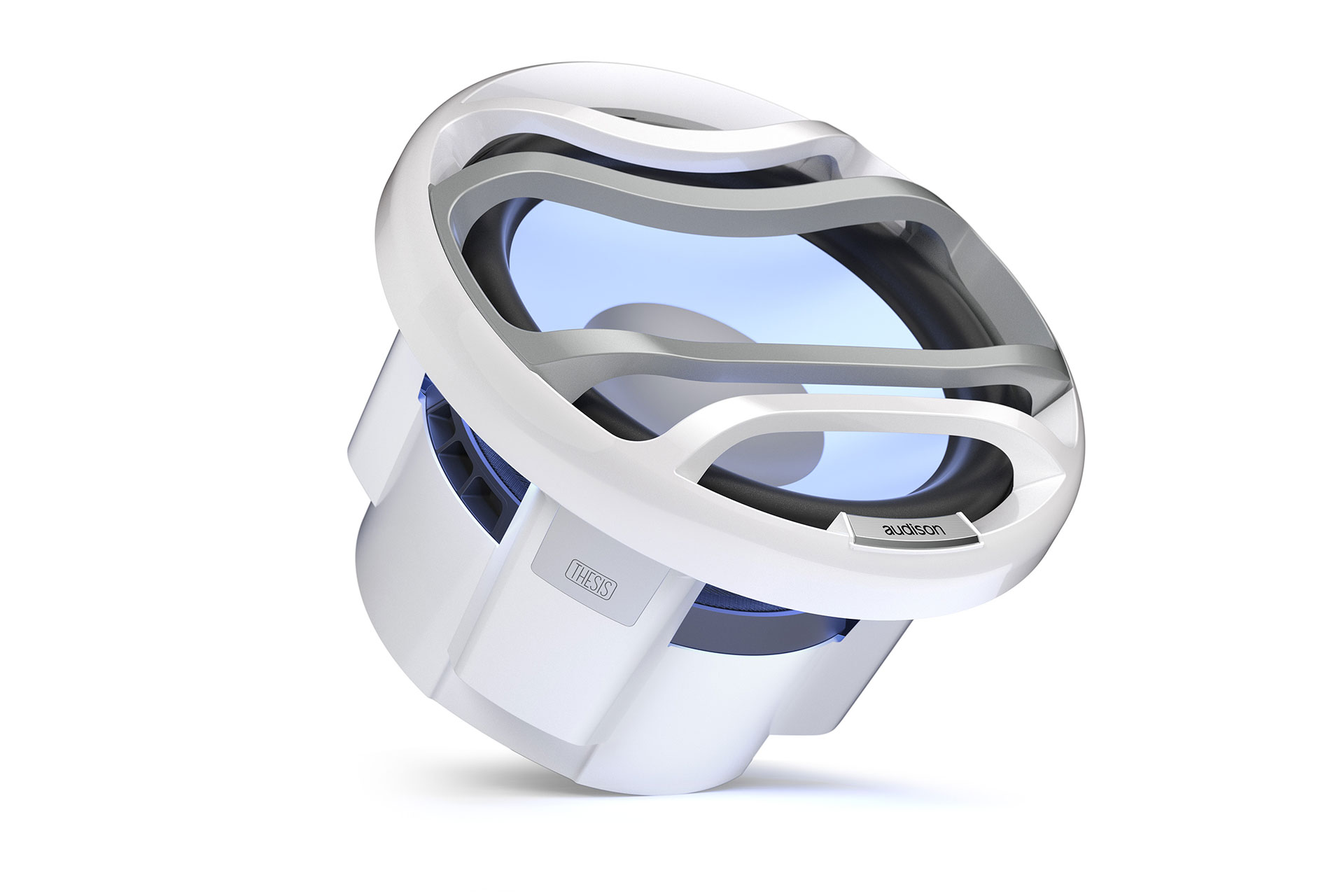

TH 10 BASSO Subwoofer Driver | 700 W Peak Power | 250 mm (10 in.) | 4 ohm
Audison TH 10 BASSO brings deep, powerful bass to the music you love. This 10″ marine subwoofer delivers dynamic low frequencies with precise control, adding warmth to familiar recordings and energy to every beat. Designed for open-air listening, it preserves definition even at high volumes, enriching the Thesis audiophile experience on board. Built for life at sea, TH 10 BASSO combines marine-grade construction with distinctive Italian design. The sculpted DOUBLE WAVE grille gives it an unmistakable presence, making sound and design part of the pleasure of life on board. TH 10 BASSO is the floor of the experience. On open water there are no walls to build the bass against, so every millimetre of excursion and every choice of material works to keep low frequencies deep and articulate at any volume. 350 W RMS of controlled power, engineered to give the whole system its foundation.
Technical Specs
| Nominal diameter | 250 mm (10 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 700 W |
| Sensitivity | 89.5 dB |
| Frequency Response | 30-500 Hz |
| Voice Coil Ø | 60.5 mm |
| Chassis Material | PLASTIC |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 150 x 70 x 36 mm |
| Voice Coil Material | CCAW |
| Former Material | GLASS FIBER |
| Cone Material | POLYPROPYLENE WITH UV INHIBITORS |
| Surround Material | RUBBER |
| Xmax | 20.6 mm (0.81 in) |
| Xmech | 15.1 mm (0.59 in) |
| Voice Coil Winding Height | 35.2 mm (1.39 in) |
| Gap Height | 10 mm (0.39 in) |
| Recommended Enclosure | 80 l (2.825 ft) |
Electric-acoustic Specs
| D | 327 cm² (50.685 in²) |
| Re | 3 Ohm |
| Fs | 50 Hz |
| Le | 0.32 mH |
| Vas | 20.3 l (0.717 ft) |
| Mms | 77.5 g (2.734 oz) |
| Cms | 0.13 mm/N |
| BL | 8.6 T•m |
| Qts | 0.864 |
| Qes | 0.956 |
| Qms | 8.9 |
General
| Weight | 7.3 kg |
Dimensions
|
|
| Dimension A | 273 mm (10.75 in) |
| Dimension B | 225 mm (8.86 in) |
| Dimension C | 189.5 mm (7.46 in) |
| Dimension D | 145.5 mm (5.73 in) |
| Dimension E | 44 mm (1.73 in) |
| Dimension U | 247 mm (9.72 in) |
| Dimension V | 5.5 mm (0.22 in) |
| Hole diameter | 5.5 mm |
Frequency Response
|
Features
- Powerful, dynamic bass, under control at extreme sound pressure levels
- Controlled excursion engineered for an environment with no reflecting surfaces
- UV-inhibited polypropylene cone, rubber surround
- Marine-grade construction, IP65, ASTM-B117 salt fog validated
- Seamless integration with TH DSP amplifiers
- Available flush-mounted in white and black
Technologies
Every curve has a job.
The functional signature of the collection. Its geometry widens sound dispersion in an environment with no reflecting surfaces and, with the same shape, deflects water and reduces salt accumulation. Engineering, not styling.
Built to outlast the sea, season after season.
IP65 marine-grade basket, Deutsch connectors, water-jet testing, 1,000 hours of ASTM-B117 salt fog validation and UV-inhibited materials. Protection engineered into the project from the beginning, beyond industry practice.
